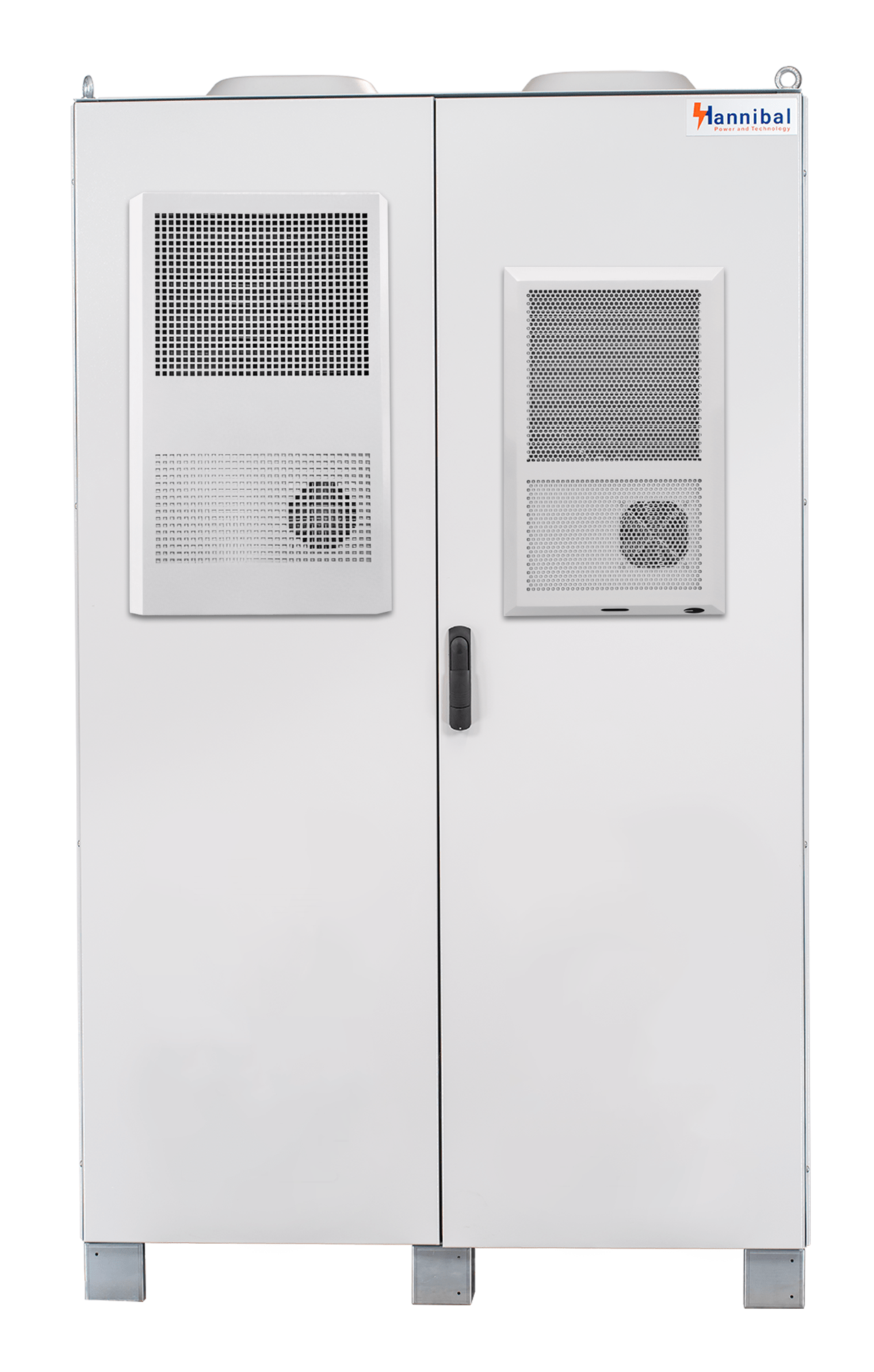

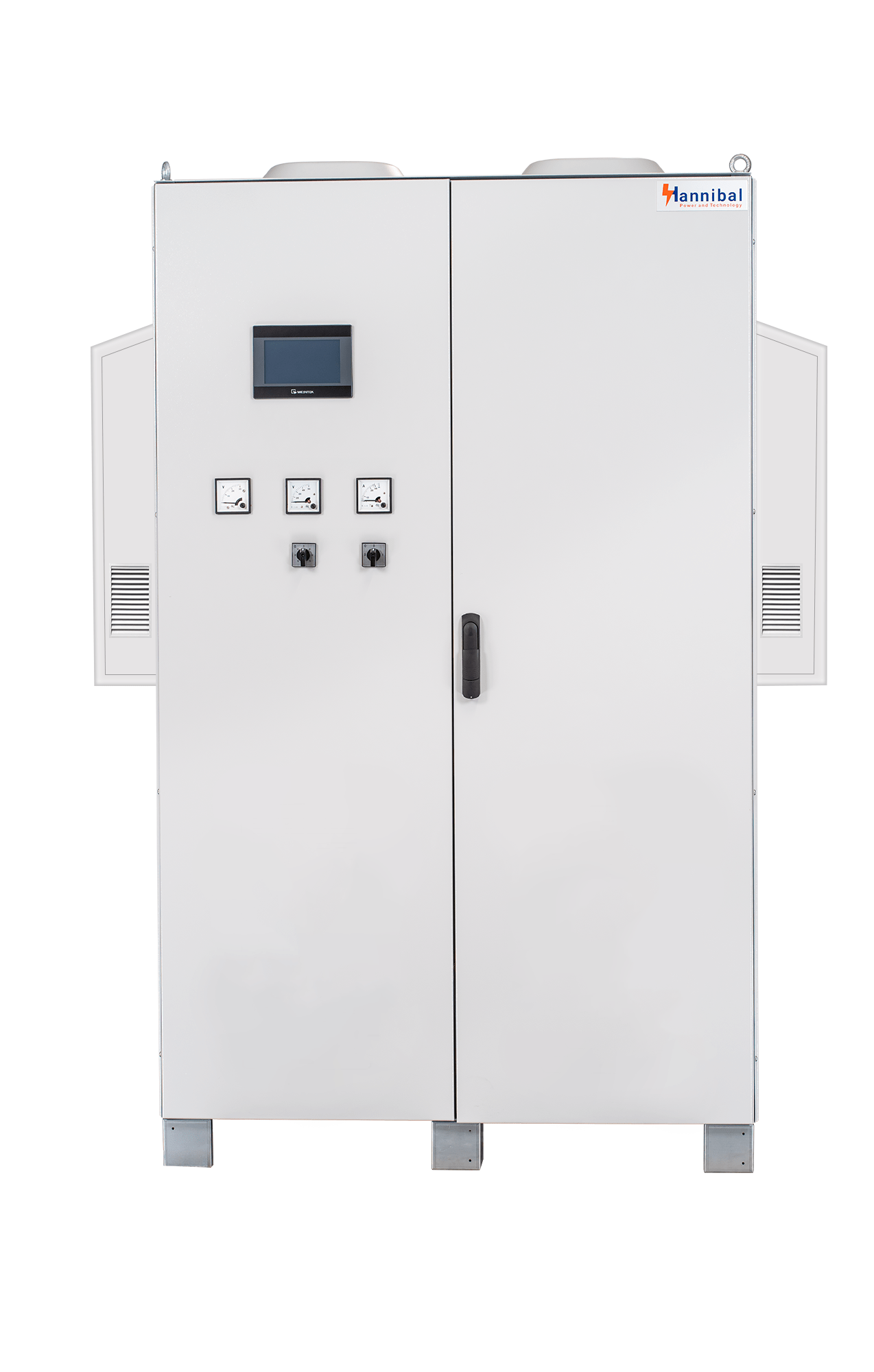

Outdoor UPS

Description

The Hannibal Outdoor Industrial UPS delivers stable, uninterrupted power in demanding environments. Designed to withstand dust, debris, vibration, and temperature extremes, it’s ideal for industrial and outdoor applications where durability and reliability are critical.



Options

  • A wide operating temperature range
  • Optional add-on battery cabinets provide longer backup times
  • Long-life batteries reduce maintenance costs
  • Remote monitoring and control
  • Temperature-compensated battery charging
  • Compact design
  • Independently programmable control and reporting
  • Ready-to-install

Hannibal Industrial

Outdoor-UPS.pdf

Monitoring Software
  • Windows
  • MAC
  • Linux

product overview

Outdoor Industrial UPS for Harsh Environments is a growing category of UPS systems that are built to withstand the stresses of an industrial environment. With floor space in data centers and other climate-controlled areas at a premium, more UPS systems are operating in harsh environments that can include vibration, dust, and liquid splatter. These harsh conditions can affect the life span of regular UPS equipment leading to unexpected failures. But Hannibal Outdoor UPS for harsh environments has components, batteries, and enclosures that can meet those challenges.

Some industrial applications, such as warehouse space or a manufacturing floor, can expose the UPS to dirt, dust, debris, and wide temperature swings. In these rugged conditions, a failure can be even more challenging to repair, and an uninterrupted power supply even more critical, so it is important to install a UPS that is specially designed to operate in harsh environments.

  • Temperature swings
  • Humidity
  • Dirt and debris
  • Liquid splatter
  • Vibration
  • Remote or hard-to-access areas
  • 2 Source input
  • 12 pulse rectifier (10% Input THDi)
  • <5% Input THDi with harmonic filter
  • Various voltage settings for different countries
  • Removing input neutral at the site
  • Input and Bypass Isolation (Scott)
  • Bypass Voltage Regulator (Servo/Static)
  • Fusible Surge Suppression (AC/DC)
  • Redundant Fans
  • Natural Cooling + Smart Fan System
  • Cabinet color can be chosen from RAL codes
  • Cable Entry (Top/side/bottom/rear)
  • Ingress Protection: up to IP66
  • Automatic Battery Test
  • Touch Panel with Mimic Diagram
  • Parallel up to 2 units
  • DC Load supply
  • Temperature Compensating Charging
  • Auxiliary Trip Contact
  • TMS or LSI/G Protection
  • Dropper (for DC loads), LVD for battery protection
  • AC/DC Earth Fault Protection (adjustable)
  • Phase Voltage/Sequence protection
  • 500 Real Time Event Log with Detailed Parameters
  • User Friendly Multilingual 320×240 Graphic Display Provides
  • Operation Information
  • Monitoring and Shutdown Software
  • RS232 Serial and RS485 Ports
  • Modbus RTU (Optional)
    2 Communication Slots
  • Remote Emergency Power Off (Optional)
  • Remote Display Panel (Optional)
  • Dry Contact (Optional)
  • SNMP (Optional)
  • ProfiBUS (Optional)
